e-Canter 1.0/1.1 Model 468 Panel van, as of 2017

Pictogram of drive Electric

  • Oblique view of vehicle from front left
  • Oblique view of vehicle from rear right

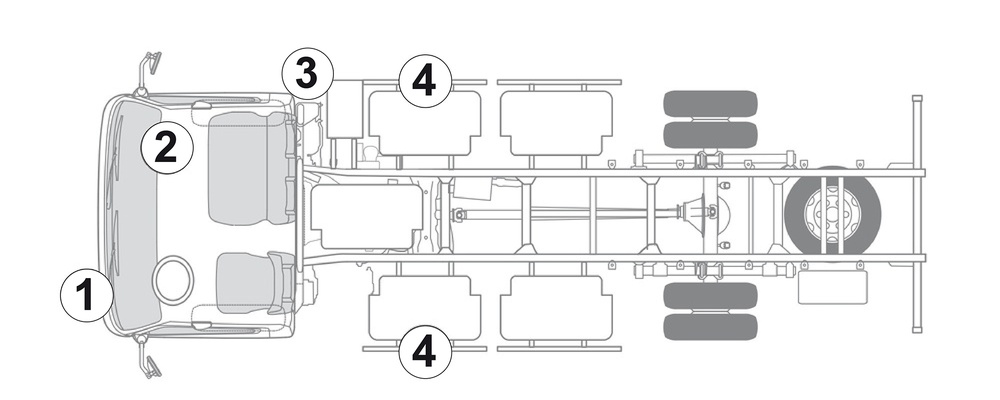

Line drawing of vehicle with markings of safety-relevant components and rescue points.
  • Battery 12 V

  • High-voltage battery

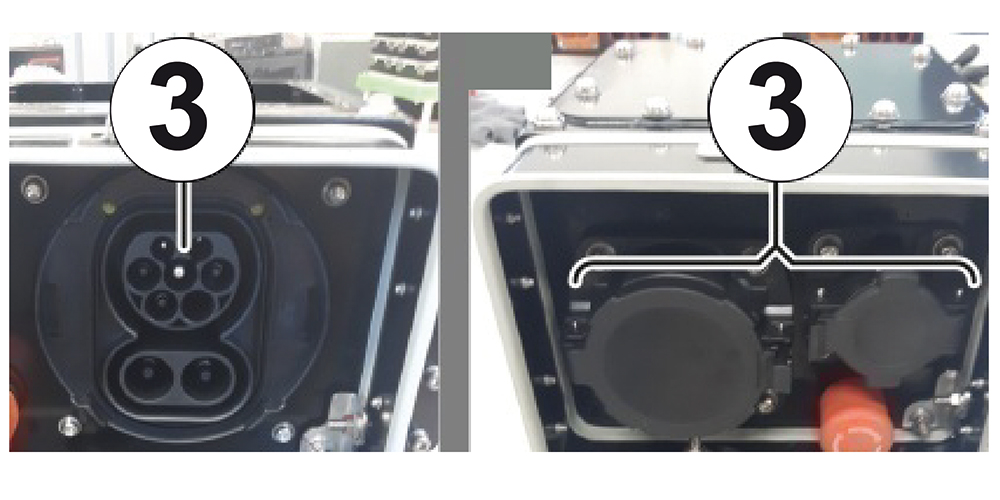

  • High-voltage charge socket

  • High-voltage disconnect device

  • Pictogram for 12 V Battery

    12 V Battery

  • Pictogram for High-voltage battery

    High-voltage battery

  • Pictogram for High-voltage components

    High-voltage components

  • Pictogram for High-voltage disconnect device

    High-voltage disconnect device

Note: Please see our emergency response guide for more information

1. Identification / recognition

3. Disable direct hazards / safety regulations

Deactivation of the high-voltage system

In all other cases, the high-voltage system should be deactivated as follows:

Option

Alternative high-voltage disconnect

EMERGENCY OFF button

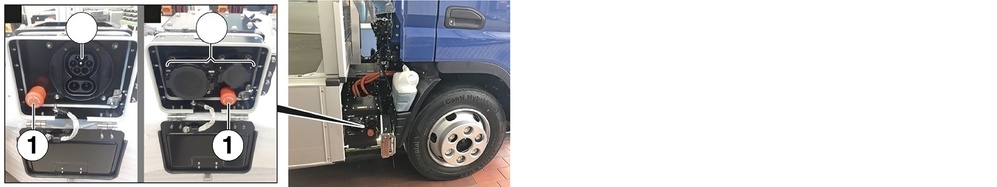

The EMERGENCY OFF button is located at the front right behind the front axle fender.

1 EMERGENCY OFF button

Pictogram for danger

Danger from electrical voltage
If you commence rescue work before waiting for the capacitor to discharge, there is a danger of electric shock which could result in severe or fatal injuries. Before starting any rescue operations, wait for at least ve minutes a er switching o the high-voltage system in order to discharge the capacitor in the voltage converter.

Pictogram for danger

In order to ensure that there is no longer any residual voltage in the high-voltage system, wait approx. 20 seconds after switching it off.

Pictogram for danger

The passive safety systems such as airbags and seat belt pretensioners will continue to be supplied with power by the 12-volt electrical system.

Disconnecting the 12 V battery

1. Remove the cover from the 12-volt battery.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.

8. Towing / transportation / storage

Pictogram for danger

Towing is possible up to 20 km/h without having to disassemble the propeller shaft.
