eVito Model 447 Mixto / Tourer, 2017 - 2021

Pictogramm des Antriebs Electric

  • Schrägansicht des Fahrzeugs von vorne links
  • Schrägansicht des Fahrzeugs von hinten rechts

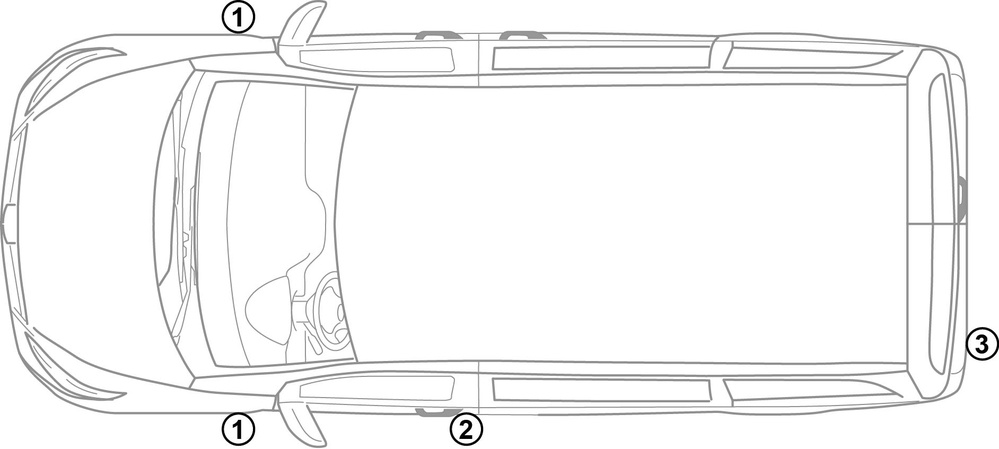

Strichzeichnung des Fahrzeugs mit Markierungen der sicherheitsrelevanten Komponenten und Rettungspunkten.
  • Pictogram for Airbag

    Airbag

  • Pictogram for Gas generator

    Gas generator

  • Pictogram for Seat belt pretensioner

    Seat belt pretensioner

  • Pictogram for SRS control unit

    SRS control unit

  • Pictogram for Gas strut / Preloaded spring

    Gas strut / Preloaded spring

  • Pictogram for Low-voltage battery

    Low-voltage battery

  • Pictogram for Battery pack, High-voltage

    Battery pack, High-voltage

  • Pictogram for High voltage power cable

    High voltage power cable

  • Pictogram for High voltage component

    High voltage component

  • Pictogram for Cable cut

    Cable cut

  • Pictogram for Low voltage device that disconnects high voltage

    Low voltage device that disconnects high voltage

Note: Please see our emergency response guide for more information

1. Identification / recognition

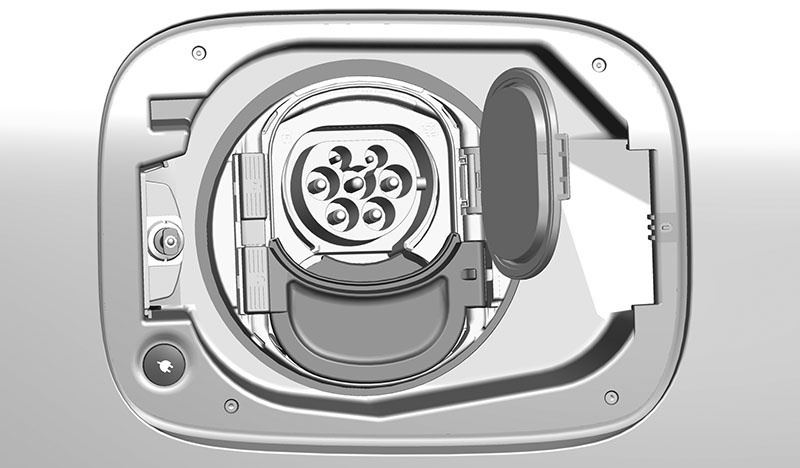

3. Disable direct hazards / safety regulations

Deactivation of the high-voltage system

In all other cases, the high-voltage system should be deactivated as follows:

Option

High-voltage disconnect

The high-voltage disconnect is located in the engine compartment on the passenger side.

(1) Pull the release
(2) Push the release down
(3) Pull out the switch

Option

Alternative high-voltage disconnect

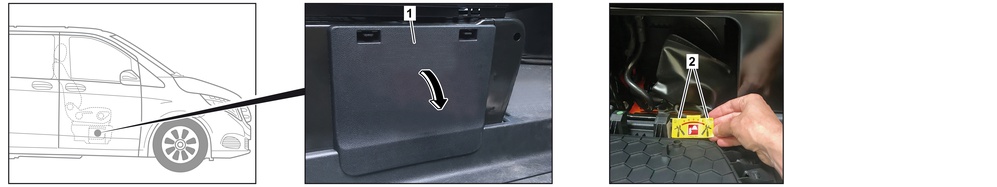

The alternative high-voltage disconnect is located in the base of the right-hand front seat.
It is indicated with a sign.

Remove the cover (1). Cut the cable at the marked point (2).

Disconnecting the 12 V battery

1. Remove the cover from the 12-volt battery.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.
