Mercedes-Benz B-Class Model 245 Tourer, 2010 - 2011

Pictogram of drive Hydrogen

  • Oblique view of vehicle from front left
  • Oblique view of vehicle from rear right

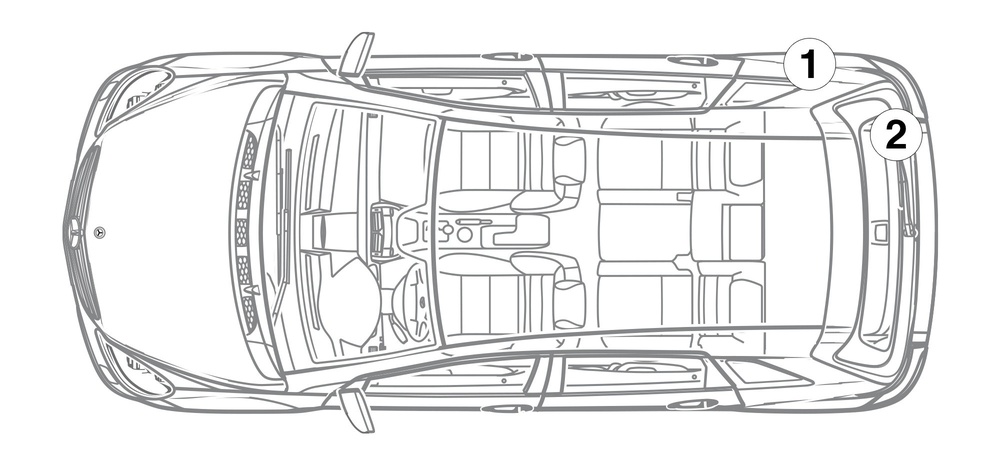

Line drawing of vehicle with markings of safety-relevant components and rescue points.
  • Pictogram for Airbag

    Airbag

  • Pictogram for Gas generator

    Gas generator

  • Pictogram for Seat belt pretensioner

    Seat belt pretensioner

  • Pictogram for SRS control unit

    SRS control unit

  • Pictogram for Gas strut / Preloaded spring

    Gas strut / Preloaded spring

  • Pictogram for Low-voltage battery

    Low-voltage battery

  • Pictogram for Battery pack, High-voltage

    Battery pack, High-voltage

  • Pictogram for High voltage component

    High voltage component

  • Pictogram for Low voltage device that disconnects high voltage

    Low voltage device that disconnects high voltage

  • Pictogram for Gas tank with gas type indication (H2)

    Gas tank with gas type indication (H2)

  • Pictogram for Gas line (H2)

    Gas line (H2)

Note: Please see our emergency response guide for more information

1. Identification / recognition

3. Disable direct hazards / safety regulations

Deactivation of the high-voltage system

Pictogram for danger

Hydrogen components are marked with an appropriate warning label, as are the two hydrogen lines between the fuel cell and the anode module.

Pictogram for danger

The high-voltage system is automatically switched off in the event of accidents in which the airbags and seat belt pretensioners trigger.

In all other cases, the high-voltage system should be deactivated as follows:

High-voltage disconnect

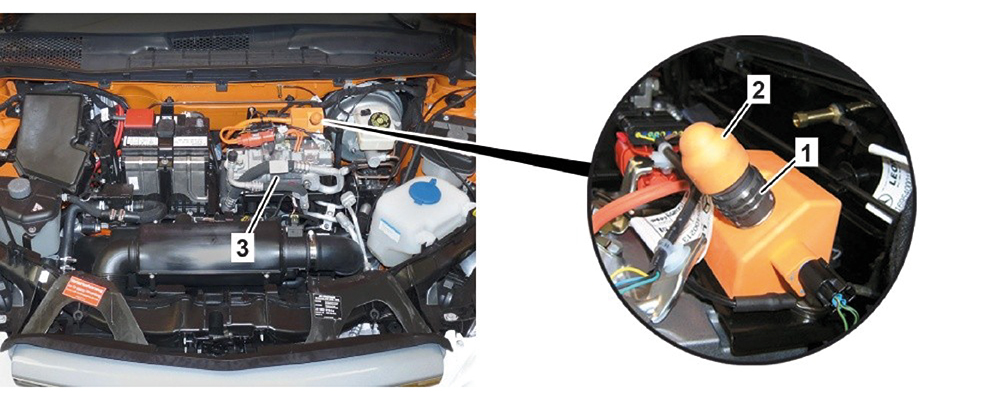

The high-voltage disconnect device is located on the top of the refrigerant compressor (3) in the engine compartment on the left side.

Pull up retaining ring (1) / Unplug connector (2)

Pictogram for danger

In order to ensure that there is no longer any residual voltage in the high-voltage system, wait approx. 20 seconds after switching it off.

Pictogram for danger

The passive safety systems such as airbags and seat belt pretensioners will continue to be supplied with power by the 12-volt electrical system.

Disconnecting the 12 V battery

1. Remove the cover from the 12-volt battery in the engine compartment.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.
