Mercedes-Benz E-Class T model (212), 2012 - 2016

Pictogram of drive Hybrid Diesel Pictogram of drive Hybrid Petrol

  • Oblique view of vehicle from front left
  • Oblique view of vehicle from rear right

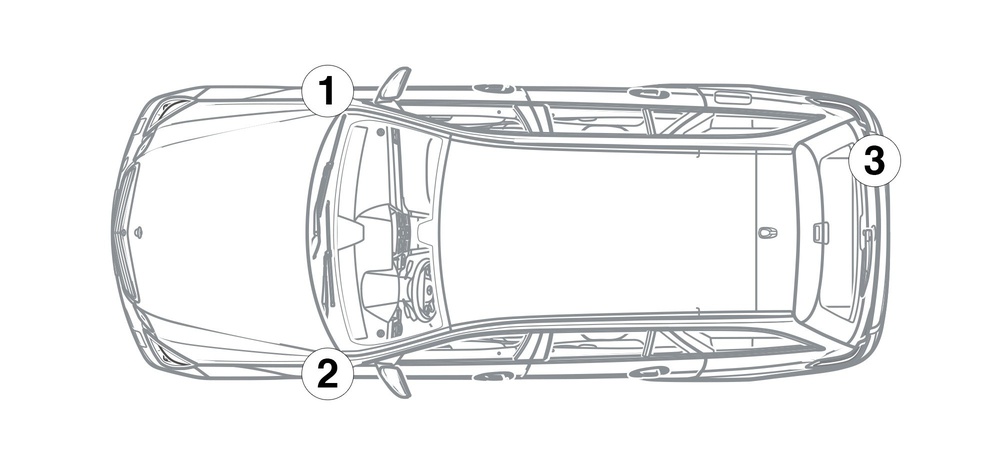

Line drawing of vehicle with markings of safety-relevant components and rescue points.
  • Left-hand drive

  • Right-hand drive

  • Pictogram for Airbag

    Airbag

  • Pictogram for Gas generator

    Gas generator

  • Pictogram for Seat belt pretensioner

    Seat belt pretensioner

  • Pictogram for SRS control unit

    SRS control unit

  • Pictogram for Active pedestrian protection system

    Active pedestrian protection system

  • Pictogram for Gas strut / Preloaded spring

    Gas strut / Preloaded spring

  • Pictogram for High strength zone

    High strength zone

  • Pictogram for Low-voltage battery

    Low-voltage battery

  • Pictogram for Petrol fuel tank

    Petrol fuel tank

  • Pictogram for Battery pack, High-voltage

    Battery pack, High-voltage

  • Pictogram for High voltage component

    High voltage component

  • Pictogram for Low voltage device that disconnects high voltage

    Low voltage device that disconnects high voltage

Note: Please see our emergency response guide for more information

1. Identification / recognition

3. Disable direct hazards / safety regulations

Deactivation of the high-voltage system

In all other cases, the high-voltage system should be deactivated as follows:

High-voltage disconnect

The high-voltage disconnect is located in the engine compartment on the passenger side.

(1) Pull the release
(2) Push the release down
(3) Pull out the switch

Battery low voltage

Disconnecting the 12 V battery

1. Remove the cover from the 12-volt battery.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.
