Mercedes-Benz C-Class 350e L Model V206 sedan, as of 2022

Pictogramm des Antriebs Hybrid Petrol

  • Schrägansicht des Fahrzeugs von vorne links
  • Schrägansicht des Fahrzeugs von hinten rechts

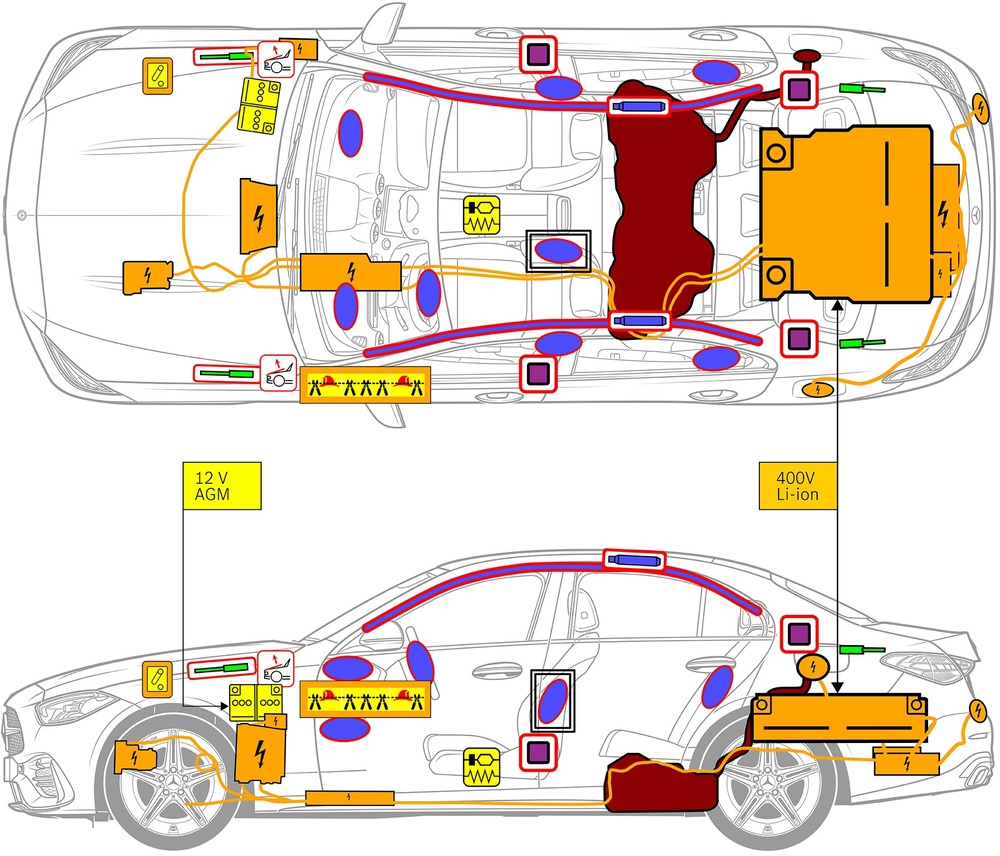

Strichzeichnung des Fahrzeugs mit Markierungen der sicherheitsrelevanten Komponenten und Rettungspunkten.
  • Pictogram for Airbag

    Airbag

  • Pictogram for Gas generator

    Gas generator

  • Pictogram for Seat belt pretensioner

    Seat belt pretensioner

  • Pictogram for SRS control unit

    SRS control unit

  • Pictogram for Active pedestrian protection system

    Active pedestrian protection system

  • Pictogram for Gas strut / Preloaded spring

    Gas strut / Preloaded spring

  • Pictogram for Warning zone

    Warning zone

  • Pictogram for Low-voltage battery

    Low-voltage battery

  • Pictogram for Petrol fuel tank

    Petrol fuel tank

  • Pictogram for Battery pack, High-voltage

    Battery pack, High-voltage

  • Pictogram for High voltage power cable

    High voltage power cable

  • Pictogram for High voltage component

    High voltage component

  • Pictogram for Cable cut

    Cable cut

  • Pictogram for Low voltage device that disconnects high voltage

    Low voltage device that disconnects high voltage

Note: Please see our emergency response guide for more information

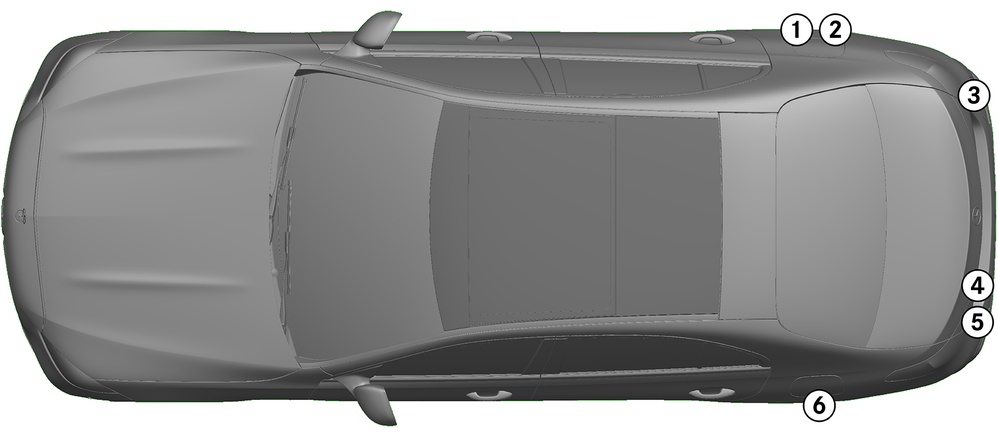

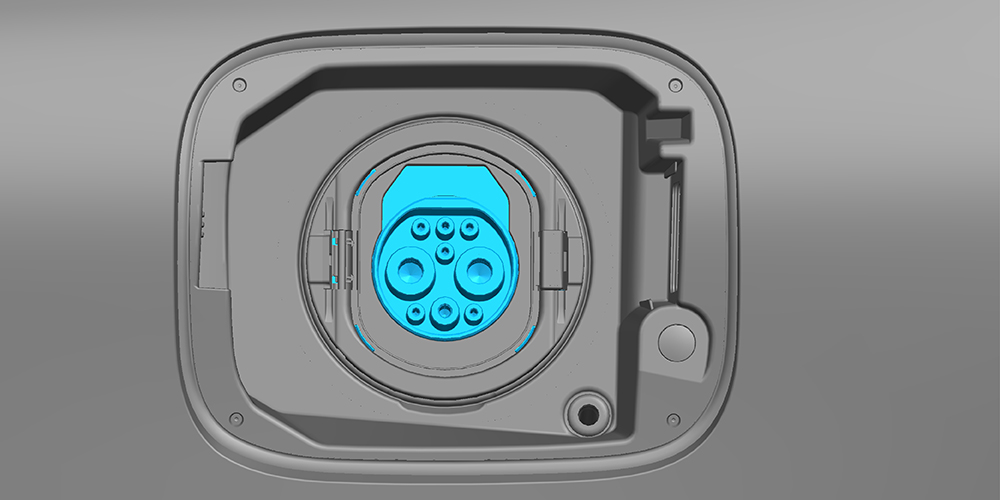

1. Identification / recognition

2. Immobilisation / stabilisation / lifting

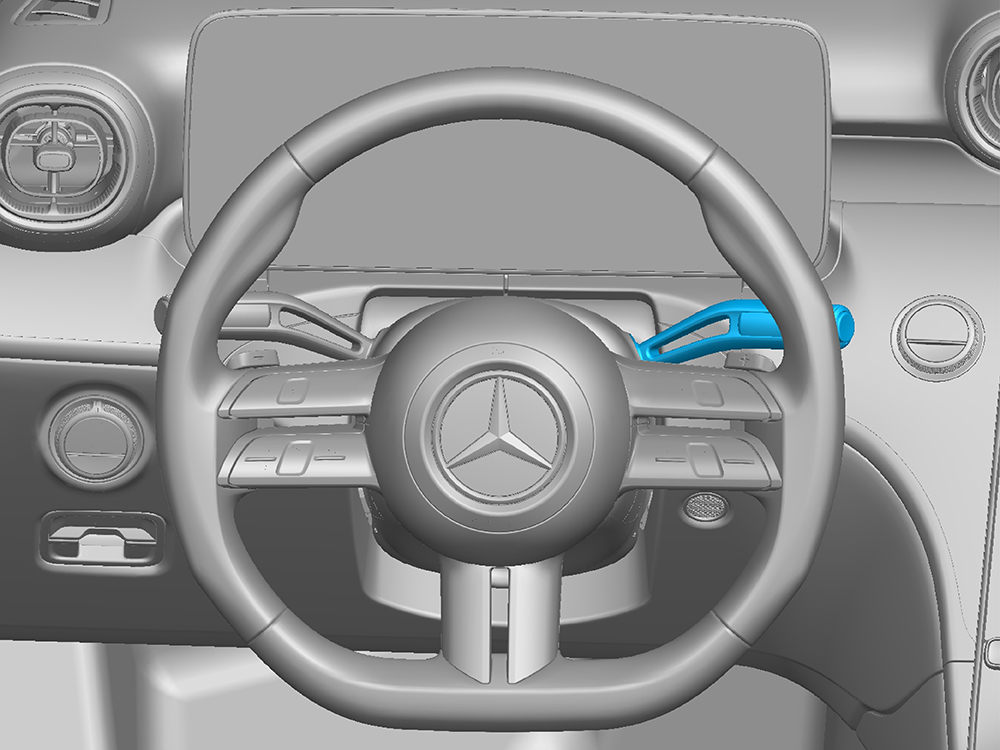

Parking brake
Press the P switch on the gear selector (1). The parking brake is automatically activated.

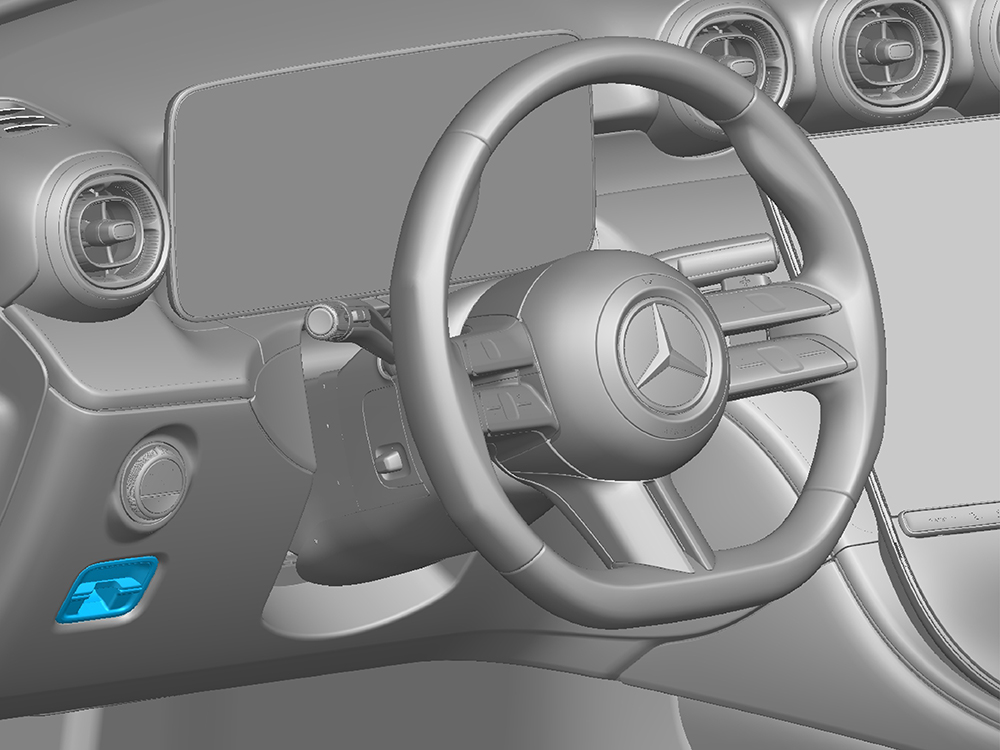

Electric parking brake (1)

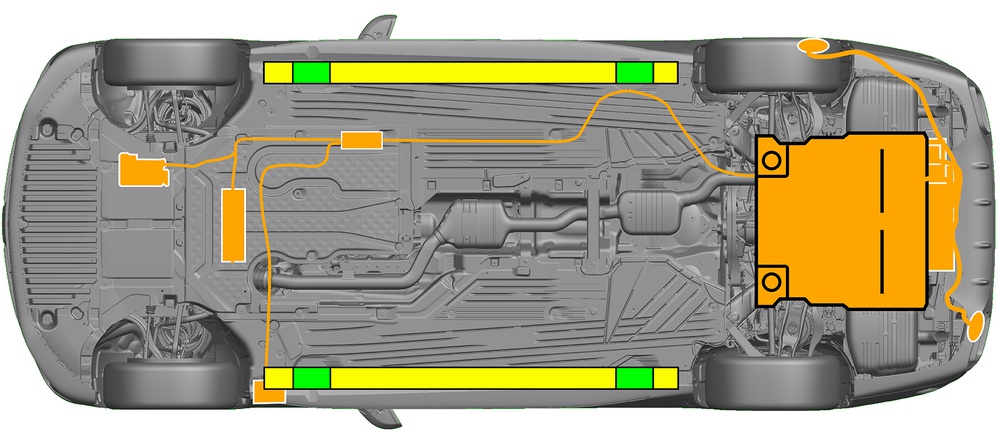

  • Legend symbol for Suitable lifting points
    Suitable lifting points
  • Legend symbol for Suitable stabilisation points on the side
    Suitable stabilisation points on the side
  • Legend symbol for High-voltage battery
    High-voltage battery
Pictogram for danger

Additional deformation of the door sills and the underbody (e.g. through support with hydraulic equipment) must be avoided during the rescue.

3. Disable direct hazards / safety regulations

Switch off the ignition:

1. Press the START/STOP button without actuating the service brake.
2. Keep the electronic vehicle key at a distance of at least 5 m.

Pictogram for danger

The absence of engine noise does not mean that the vehicle is switched off.

Pictogram for danger

A restart is possible until the vehicle is switched off.

Deactivation of the high-voltage system

Pictogram for danger

The high-voltage system is automatically switched off in the event of accidents in which the airbags and seat belt pretensioners trigger.

In all other cases, the high-voltage system should be deactivated as follows:

Option

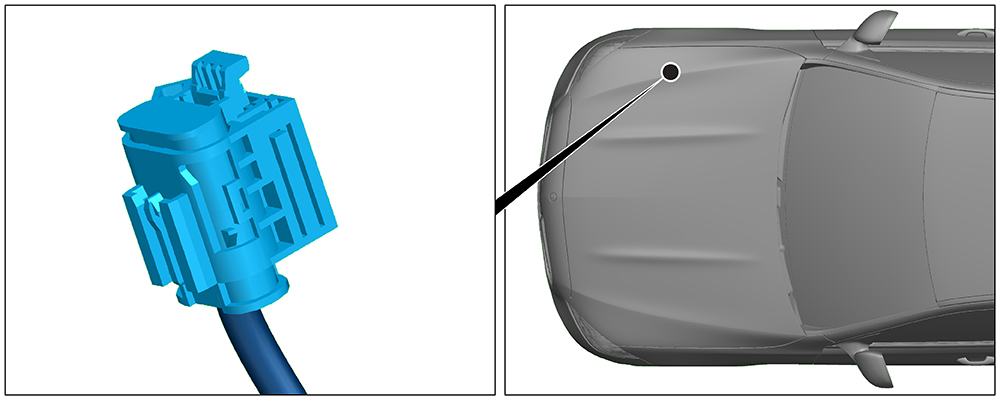

High-voltage disconnect

The high-voltage disconnect is located in the engine compartment on the passenger side.

(1) Pull the release
(2) Push the release down
(3) Pull out the switch

Option

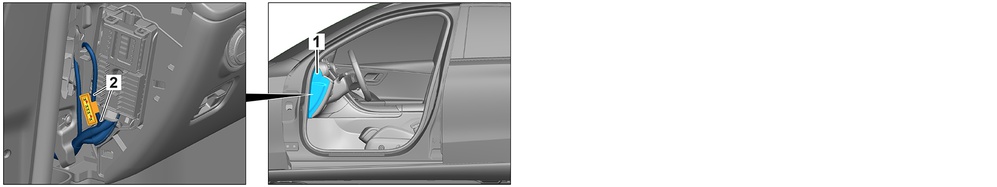

Alternative high-voltage disconnect

The alternative high-voltage disconnect is located under the cover of the fuse box in the cockpit on the driver’s side.
It is indicated with a sign.

Remove the cover (1). Cut the cable at the marked point (2).

Pictogram for danger

In order to ensure that there is no longer any residual voltage in the high-voltage system, wait approx. 20 seconds after switching it off.

Pictogram for danger

The passive safety systems such as airbags and seat belt pretensioners will continue to be supplied with power by the 12-volt electrical system.

Disconnecting the 12 V battery

1. Remove the cover from the 12-volt battery in the engine compartment.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.

Pictogram for danger

The passive safety systems (airbags and seat belt pretensioners) are deactivated.

4. Access to the occupants

When rescuing the vehicle occupants, the components of the restraint systems (in particular pyrotechnic elements) must be taken into account in accordance with the information on page 1.

Steering wheel adjustment

Steering wheel adjustment

Seat adjustment (electric)

Seat adjustment (electric)

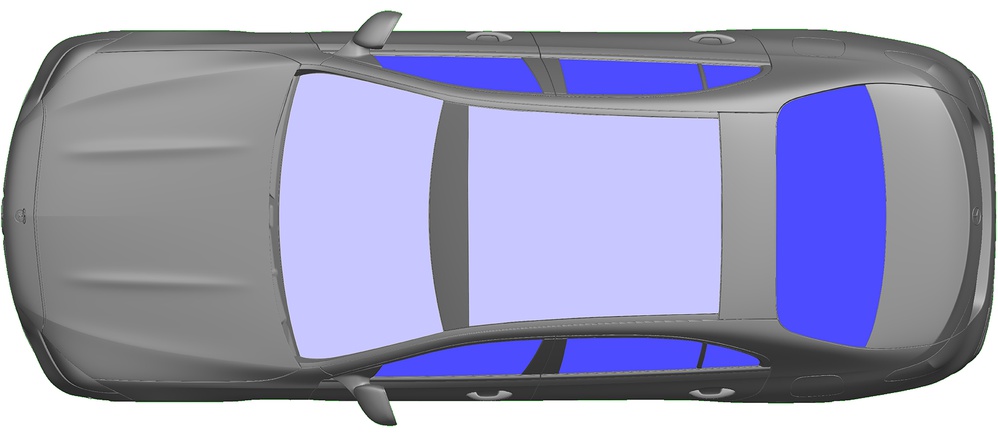

  • Legend symbol for VSG: Laminated safety glass
    VSG: Laminated safety glass
  • Legend symbol for ESG: Tempered glass
    ESG: Tempered glass

5. Stored energy / liquids / gases / solids

Pictogram of the element Pictograms of the warnings Description
Pictogram for Battery low voltage
Pictogram for Flammable
Pictogram for Corrosives
Pictogram for Explosive
12 V
Pictogram for Battery pack, High-voltage
Pictogram for Warning, Electricity
Pictogram for Flammable
Pictogram for Hazardous to the human health
Pictogram for Corrosives
Pictogram for Acute toxicity
Pictogram for Explosive
400 V
Pictogram for Petrol fuel tank
Pictogram for Flammable
Pictogram for Hazardous to the human health
50 L
Pictogram for Air-conditioning component
Pictogram for Flammable
Pictogram for Hazardous to the human health
Pictogram for Warning; low temperature
650 ± 10 g
Pictogram for danger

All high-voltage cables have orange insulation.

6. In case of fire

Pictogram for Use water to extinguish the fire

Use large volumes of water (H₂O) to extinguish a vehicle fire.
Use large volumes of water (H₂O) to cool the Li-ion battery.

Pictogram for danger

Warning: Ignition of the battery possible

Pictogram for Flammable
Pictogram for danger

If coolant is leaking from the high-voltage battery, it may become unstable owing to thermal overload. Check the battery temperature with an IR thermal imager.

Pictogram for Use thermal Infrared camera

7. In case of submersion

There is no risk of voltage in the bodywork.
After recovery of the vehicle:
1. Allow the water to drain out of the interior.
2. Commence deactivation of the high-voltage system (see Section 3).

8. Towing / transportation / storage

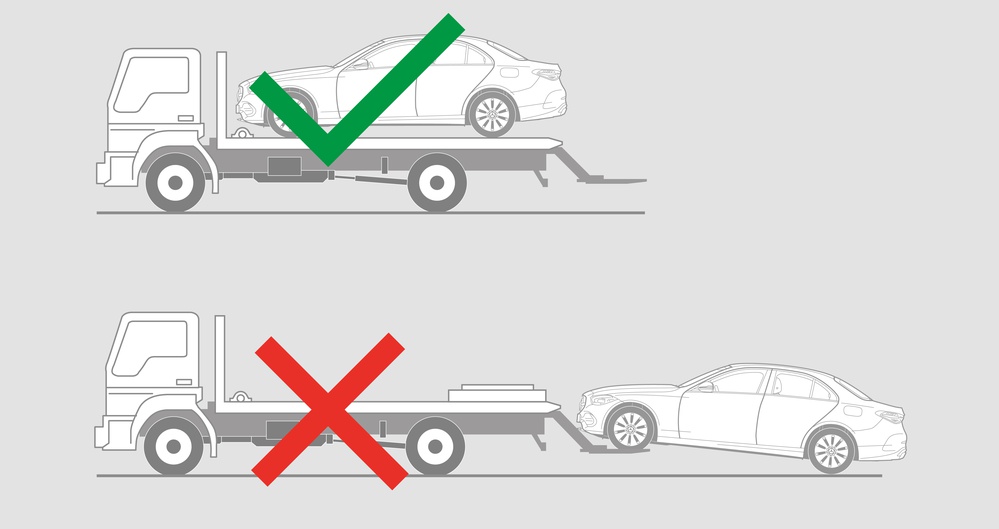

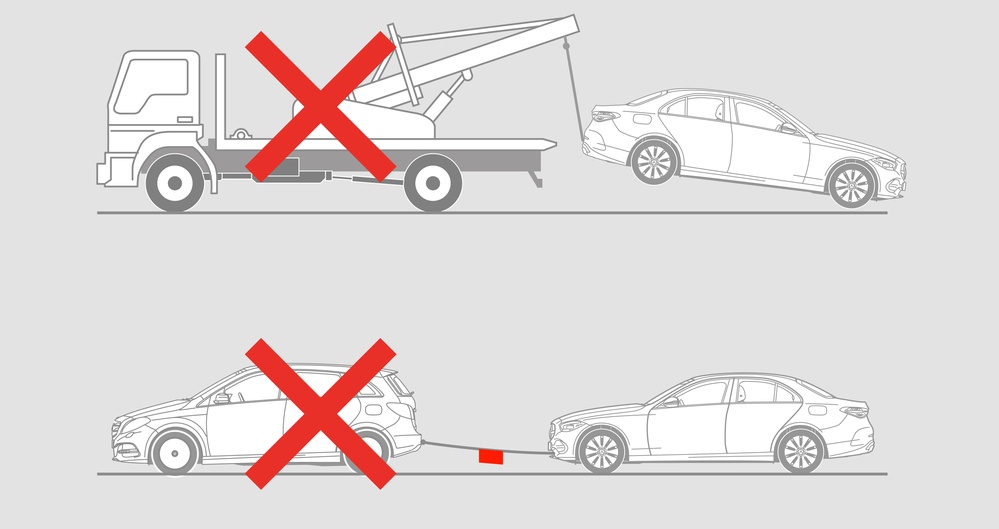

Only transport the vehicle with both axles on a tow truck or car transporter.
Maintain a safe distance from other vehicles.
Pictogram for danger

Warning: Ignition of the battery possible

Pictogram for Flammable

9. Important additional information

You can find more information in the Guidelines for car towing services.

10. Explanation of pictograms used

  • Pictogram for Hybrid Electric Vehicle on fuel of liquid group 2

    Hybrid Electric Vehicle on fuel of liquid group 2

  • Pictogram for General warning sign

    General warning sign

  • Pictogram for Warning, Electricity

    Warning, Electricity

  • Pictogram for Flammable

    Flammable

  • Pictogram for Hazardous to the human health

    Hazardous to the human health

  • Pictogram for Corrosives

    Corrosives

  • Pictogram for Acute toxicity

    Acute toxicity

  • Pictogram for Explosive

    Explosive

  • Pictogram for Use water to extinguish the fire

    Use water to extinguish the fire

  • Pictogram for Use thermal Infrared camera

    Use thermal Infrared camera

  • Pictogram for Bonnet

    Bonnet

  • Pictogram for Remove smart key

    Remove smart key

  • Pictogram for Air-conditioning component

    Air-conditioning component

  • Pictogram for Warning; low temperature

    Warning; low temperature
