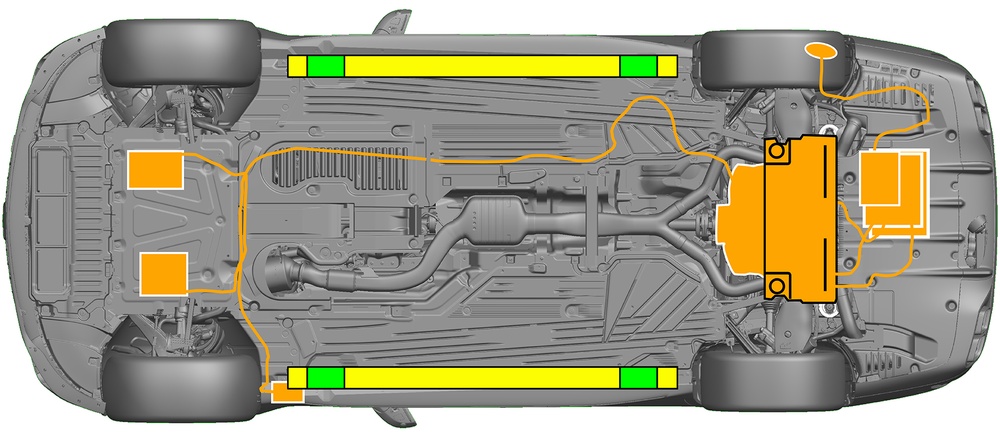

Airbag
Gas generator
Seat belt pretensioner
SRS control unit
Active pedestrian protection system
Gas strut / Preloaded spring
Low-voltage battery
Petrol fuel tank
Battery pack, High-voltage
High voltage power cable
High voltage component
Cable cut
Low voltage device that disconnects high voltage
Note: Please see our emergency response guide for more information
Additional deformation of the door sills and the underbody (e.g. through support with hydraulic equipment) must be avoided during the rescue.
1. Press the START/STOP button without actuating the service brake.
2. Keep the electronic vehicle key at a distance of at least 5 m.
The absence of engine noise does not mean that the vehicle is switched off.
A restart is possible until the vehicle is switched off.
The high-voltage system is automatically switched off in the event of accidents in which the airbags and seat belt pretensioners trigger.
In order to ensure that there is no longer any residual voltage in the high-voltage system, wait approx. 20 seconds after switching it off.
The passive safety systems such as airbags and seat belt pretensioners will continue to be supplied with power by the 12-volt electrical system.
1. Remove the cover from the 12-volt battery in the engine compartment.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.
The passive safety systems (airbags and seat belt pretensioners) are deactivated.
|
|
12 V |
|
|
400 V |
|
|
60 L |
|
|
650 ± 10 g |
All high-voltage cables have orange insulation.
Use large volumes of water (H₂O) to extinguish a vehicle fire.
Use large volumes of water (H₂O) to cool the Li-ion battery.
Warning: Battery re-ignition
If coolant is leaking from the high-voltage battery, it may become unstable owing to thermal overload. Check the battery temperature with an IR thermal imager.
There is no risk of voltage in the bodywork.
After recovery of the vehicle:
1. Allow the water to drain out of the interior.
2. Commence deactivation of the high-voltage system (see Section 3).
Warning: Battery re-ignition
You can find more information in the Guidelines for car towing services.
Hybrid Electric Vehicle on fuel of liquid group 2
General warning sign
Warning, Electricity
Flammable
Hazardous to the human health
Corrosives
Acute toxicity
Explosive
Use water to extinguish the fire
Use thermal Infrared camera
Bonnet
Remove smart key
Air-conditioning component
Warning; low temperature
