Mercedes-AMG SLS Model N197 Coupé, 2013 - 2014

Pictogram of drive Electric

  • Oblique view of vehicle from front left
  • Oblique view of vehicle from rear right
Line drawing of vehicle with markings of safety-relevant components and rescue points.
  • Pictogram for Airbag

    Airbag

  • Pictogram for Gas generator

    Gas generator

  • Pictogram for Seat belt pretensioner

    Seat belt pretensioner

  • Pictogram for SRS control unit

    SRS control unit

  • Pictogram for Gas strut / Preloaded spring

    Gas strut / Preloaded spring

  • Pictogram for High strength zone

    High strength zone

  • Pictogram for Low-voltage battery

    Low-voltage battery

  • Pictogram for Battery pack, High-voltage

    Battery pack, High-voltage

  • Pictogram for High-voltage cable / component

    High-voltage cable / component

  • Pictogram for High voltage component

    High voltage component

  • Pictogram for Low voltage device that disconnects high voltage

    Low voltage device that disconnects high voltage

Note: Please see our emergency response guide for more information

1. Identification / recognition

3. Disable direct hazards / safety regulations

Deactivation of the high-voltage system

In all other cases, the high-voltage system should be deactivated as follows:

Option

High-voltage disconnect

The high-voltage disconnect device is located under the lid of the fuse and relay box on the rear panel in the boot.

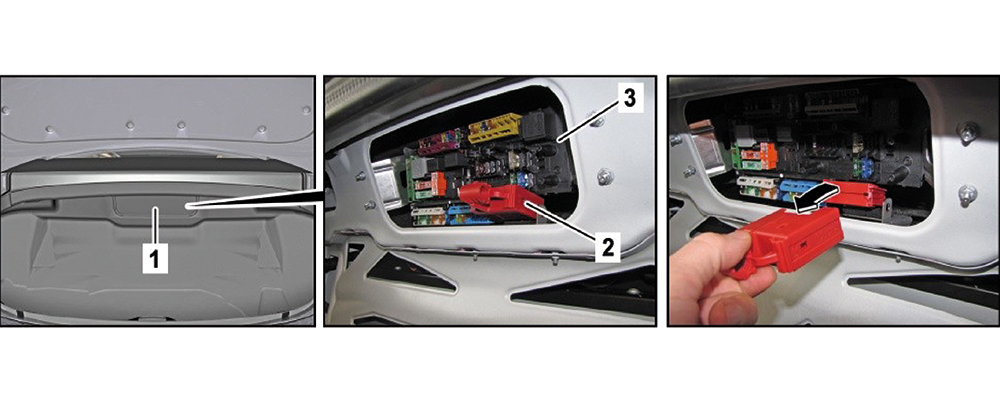

Open lid (1) / Pull out switch (2) on fuse and relay box (3)

Pictogram for danger

In order to ensure that there is no longer any residual voltage in the high-voltage system, wait approx. 20 seconds after switching it off.

Pictogram for danger

The passive safety systems such as airbags and seat belt pretensioners will continue to be supplied with power by the 12-volt electrical system.

Disconnecting the 12 V battery

1. Remove the cover from the 12-volt battery in the engine compartment.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.

4. Access to the occupants

The SLS AMG is equipped with a safety system which uncouples the door hinges from the hinge arms when the vehicle comes to rest lying on its roof after an accident.

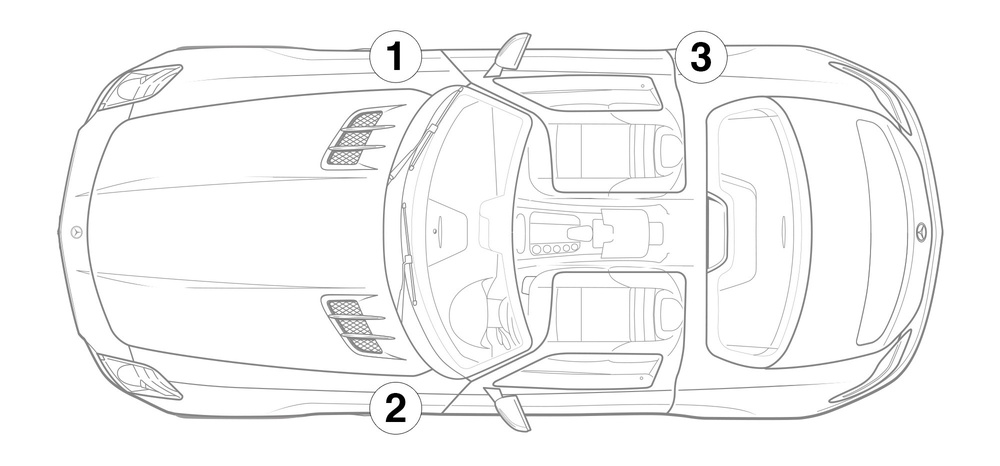

Each door hinge (1) contains a pyrotechnic initiator (2) which is triggered by the restraint systems control unit. When the door lock is opened, the doors can be pulled off the hinge arms (3).

The SLS AMG is equipped with a safety system which uncouples the door hinges from the hinge arms when the vehicle comes to rest lying on its roof after an accident. Each door hinge (1) contains a pyrotechnic initiator (2) which is triggered by the restraint systems control unit. When the door lock is opened, the doors can be pulled off the hinge arms (3).
