Mercedes-Benz GLE 300d 4MATIC Model C167 Coupé, as of 2021

Pictogramm des Antriebs Diesel

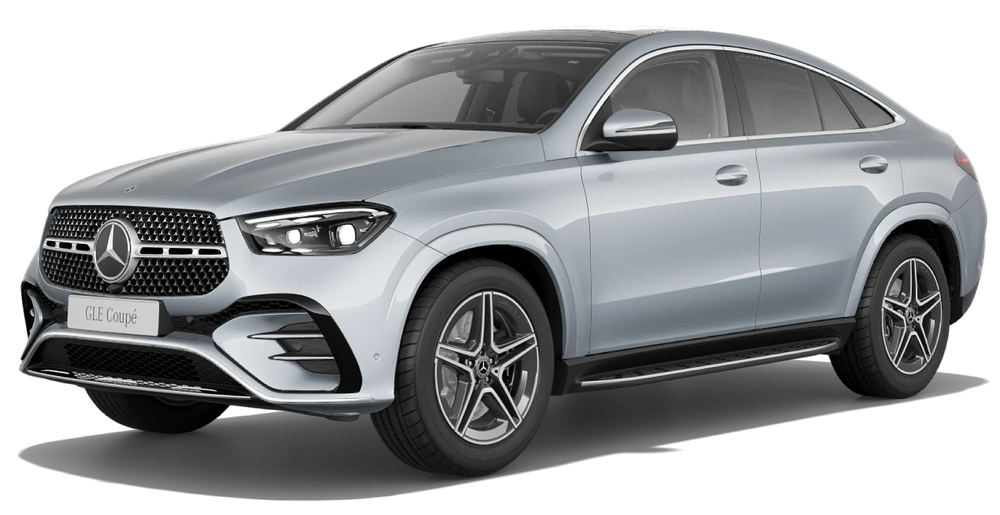

  • Schrägansicht des Fahrzeugs von vorne links

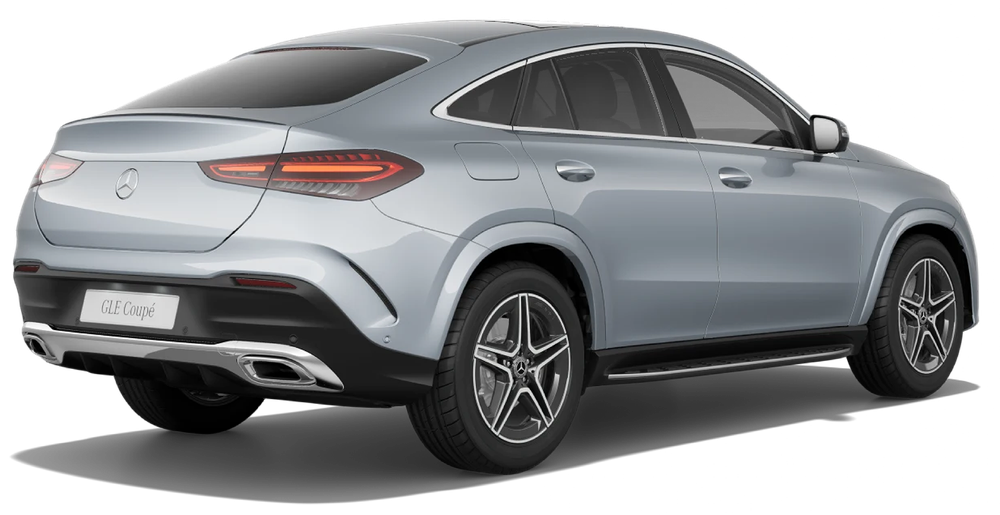

  • Schrägansicht des Fahrzeugs von hinten rechts

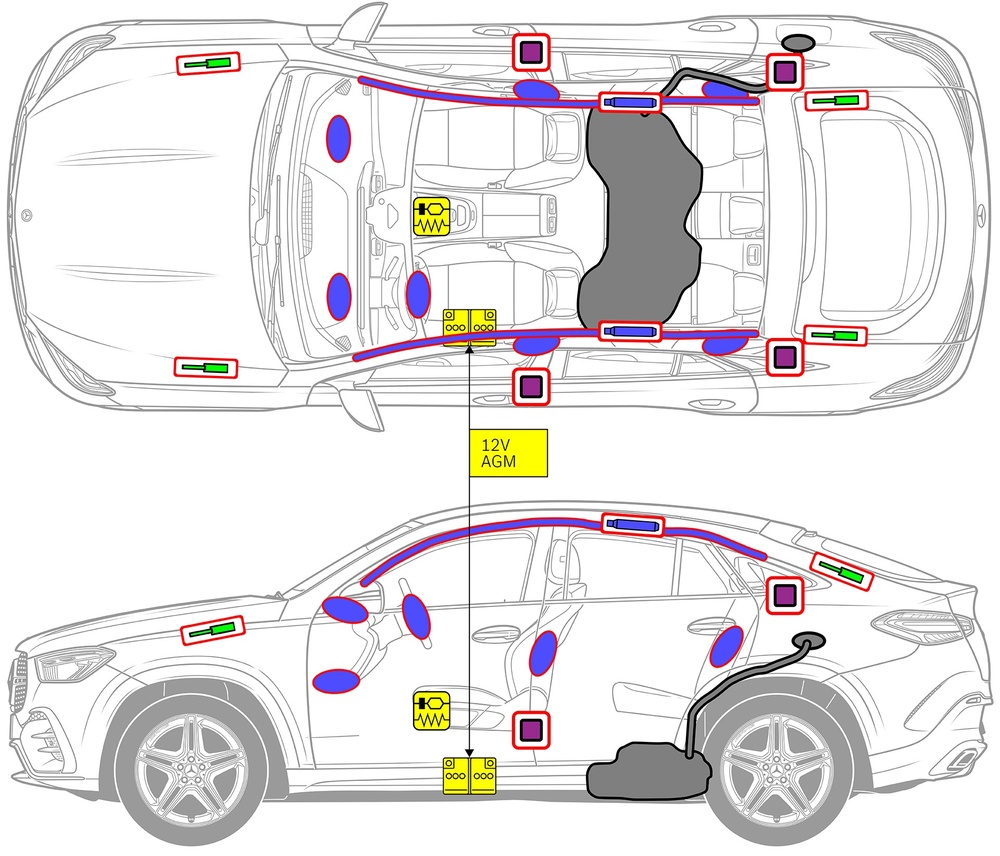

Strichzeichnung des Fahrzeugs mit Markierungen der sicherheitsrelevanten Komponenten und Rettungspunkten.
  • Pictogram for Airbag

    Airbag

  • Pictogram for Gas generator

    Gas generator

  • Pictogram for Seat belt pretensioner

    Seat belt pretensioner

  • Pictogram for SRS control unit

    SRS control unit

  • Pictogram for Gas strut / Preloaded spring

    Gas strut / Preloaded spring

  • Pictogram for Low-voltage battery

    Low-voltage battery

  • Pictogram for Diesel Fuel tank

    Diesel Fuel tank

Note: Please see our emergency response guide for more information

1. Identification / recognition

2. Immobilisation / stabilisation / lifting

Parking brake
Press the P switch on the gear selector (1). The parking brake is automatically activated.
Electric parking brake (1)
  • Legend symbol for Suitable lifting points
    Suitable lifting points
  • Legend symbol for Suitable stabilisation points on the side
    Suitable stabilisation points on the side
Pictogram for danger

Additional deformation of the door sills and the underbody (e.g. through support with hydraulic equipment) must be avoided during the rescue.

3. Disable direct hazards / safety regulations

Switch off the ignition:

1. Press the START/STOP button without actuating the service brake.
2. Keep the electronic vehicle key at a distance of at least 5 m.

Pictogram for danger

The absence of engine noise does not mean that the vehicle is switched off.

Pictogram for danger

A restart is possible until the vehicle is switched off.

Disconnecting the 12 V battery

1. Remove the cover from the 12-volt battery.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.

Pictogram for danger

The passive safety systems (airbags and seat belt pretensioners) are deactivated.

4. Access to the occupants

When rescuing the vehicle occupants, the components of the restraint systems (in particular pyrotechnic elements) must be taken into account in accordance with the information on page 1.

Steering wheel adjustment

Steering wheel adjustment

Seat adjustment (electric)

Seat adjustment (electric)

  • Legend symbol for VSG: Laminated safety glass
    VSG: Laminated safety glass
  • Legend symbol for ESG: Tempered glass
    ESG: Tempered glass

5. Stored energy / liquids / gases / solids

Pictogram of the element Pictograms of the warnings Description
Pictogram for Battery low voltage
Pictogram for Flammable
Pictogram for Corrosives
Pictogram for Explosive
12 V
Pictogram for Diesel Fuel tank
Pictogram for Flammable
Pictogram for Hazardous to the human health
85 L
Pictogram for Air-conditioning component
Pictogram for Flammable
Pictogram for Hazardous to the human health
Pictogram for Warning; low temperature
660 ± 10 g

6. In case of fire

Pictogram for Use water to extinguish the fire
Pictogram for Use dry foam to extinguish the fire
Pictogram for Use wet foam to extinguish the fire

Use large volumes of water (H₂O) to extinguish a vehicle fire.

7. In case of submersion

There is no risk of voltage in the bodywork. After recovery of the vehicle:
1. Allow the water to drain out of the interior.
2. Commence deactivation of the 12 V/48 V electrical system (see Section 3).

8. Towing / transportation / storage

9. Important additional information

You can find more information in the Guidelines for car towing services.

10. Explanation of pictograms used

  • Pictogram for Vehicle on fuel of liquid group 1

    Vehicle on fuel of liquid group 1

  • Pictogram for General warning sign

    General warning sign

  • Pictogram for Flammable

    Flammable

  • Pictogram for Hazardous to the human health

    Hazardous to the human health

  • Pictogram for Corrosives

    Corrosives

  • Pictogram for Explosive

    Explosive

  • Pictogram for Use water to extinguish the fire

    Use water to extinguish the fire

  • Pictogram for Use dry foam to extinguish the fire

    Use dry foam to extinguish the fire

  • Pictogram for Use wet foam to extinguish the fire

    Use wet foam to extinguish the fire

  • Pictogram for Remove smart key

    Remove smart key

  • Pictogram for Air-conditioning component

    Air-conditioning component

  • Pictogram for Warning; low temperature

    Warning; low temperature
