smart fortwo Model A451 Convertible, 2012 - 2015

Pictogram of drive Electric

  • Oblique view of vehicle from front left
  • Oblique view of vehicle from rear right

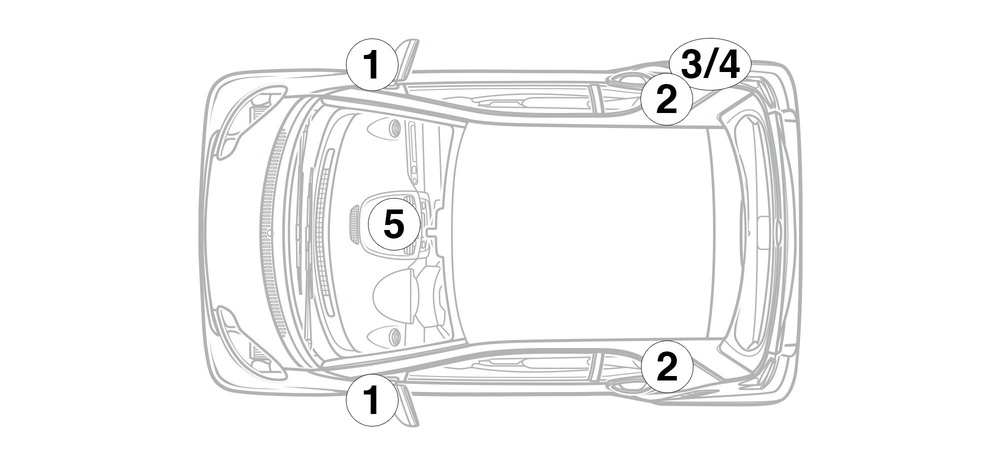

Line drawing of vehicle with markings of safety-relevant components and rescue points.
  • Battery 12 V

  • High-voltage battery

  • High-voltage disconnect device

  • Pictogram for Airbag

    Airbag

  • Pictogram for Seat belt tensioner

    Seat belt tensioner

  • Pictogram for Body reinforcement

    Body reinforcement

  • Pictogram for Restraint systems control unit

    Restraint systems control unit

  • Pictogram for 12 V Battery

    12 V Battery

  • Pictogram for High-voltage battery

    High-voltage battery

  • Pictogram for High-voltage components

    High-voltage components

  • Pictogram for High-voltage disconnect device

    High-voltage disconnect device

Note: Please see our emergency response guide for more information

1. Identification / recognition

3. Disable direct hazards / safety regulations

Deactivation of the high-voltage system

In all other cases, the high-voltage system should be deactivated as follows:

High-voltage disconnect

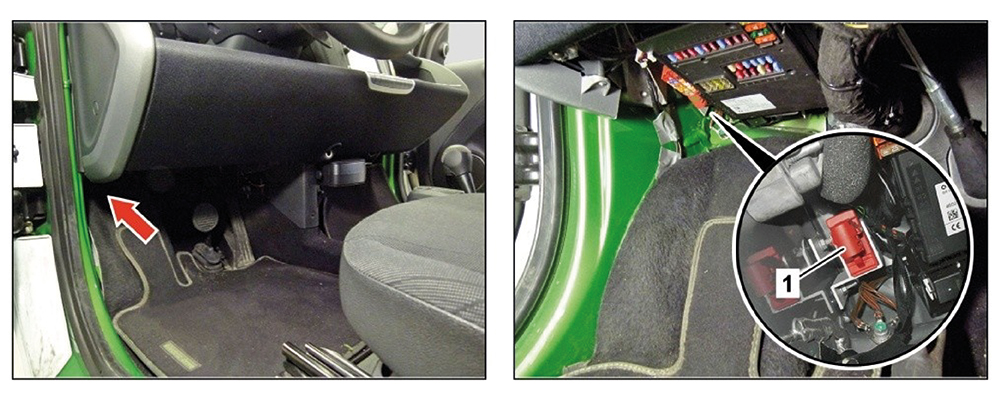

The high-voltage disconnect device is located on the underside of the instrument panel on the left side.

Pull connector (1) out of bracket

Pictogram for danger

In order to ensure that there is no longer any residual voltage in the high-voltage system, wait approx. 20 seconds after switching it off.

Pictogram for danger

The passive safety systems such as airbags and seat belt pretensioners will continue to be supplied with power by the 12-volt electrical system.

Disconnecting the 12 V battery

1. Remove the cover from the 12-volt battery.
2. Disconnect the negative cable of the 12-volt battery at the screw connection and secure it against unintentional contact.
