C-Class HYBRID wagon model 205

As of 2014


  • On-board electrical system battery

  • Additional battery

  • High-voltage battery

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device

Note

The alternative high-voltage disconnect device is only to be operated when the high-voltage disconnect device in the engine compartment is inaccessible.

Legend

  • Airbag

  • Gas generator

  • Seat belt tensioner

  • Gas-filled strut

  • Fuel tank

  • Restraint systems control unit

  • 12 V Battery

  • High-voltage battery

  • High-voltage components

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device

  • Pedestrian protection

High-voltage disconnect device

The high-voltage disconnect device is located in the engine compartment next to the coolant expansion reservoir on the right (viewed in the direction of travel).

High-voltage disconnect device in engine compartment, operate release (1) / Pull out switch (2)

Alternative high-voltage disconnect device

The alternative high-voltage disconnect device is located un- der the cover of the fuse box on the left of the cockpit. It is marked with an information label.

Note

The alternative high-voltage disconnect device is only to be operated when the high-voltage disconnect device in the engine compartment is inaccessible.

Information label on alternative high voltage disconnect device

Remove cover (1) of fuse box / Cut line at marked location (2)

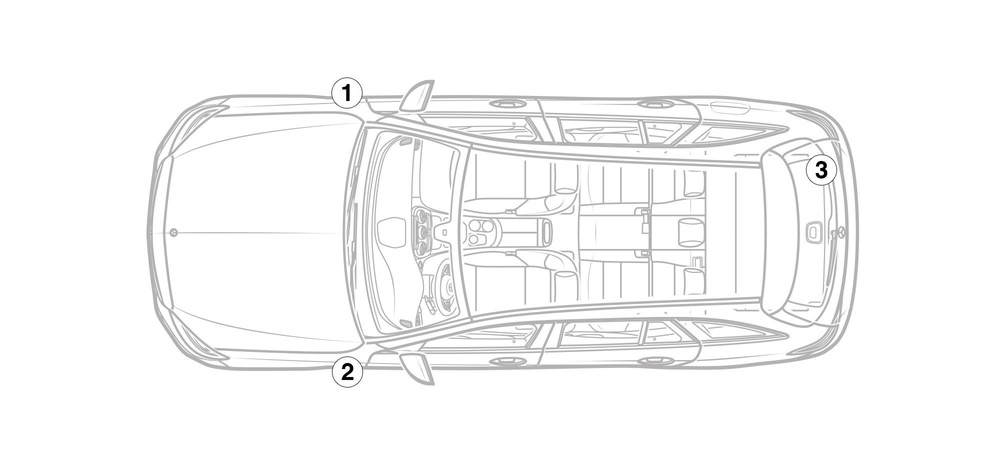

Vehicle identification

  • Right fender

  • Left fender

  • Right of trunk lid
