M-Class HYBRID Cross-country vehicle model 164

as of 2009


  • On-board electrical system battery

  • Additional battery

  • High-voltage battery

  • High-voltage disconnect device

Legend

  • Airbag

  • Gas generator

  • Seat belt tensioner

  • Gas-filled strut

  • Body reinforcement

  • Fuel tank

  • Restraint systems control unit

  • 12 V Battery

  • High-voltage battery

  • High-voltage components

  • High-voltage disconnect device

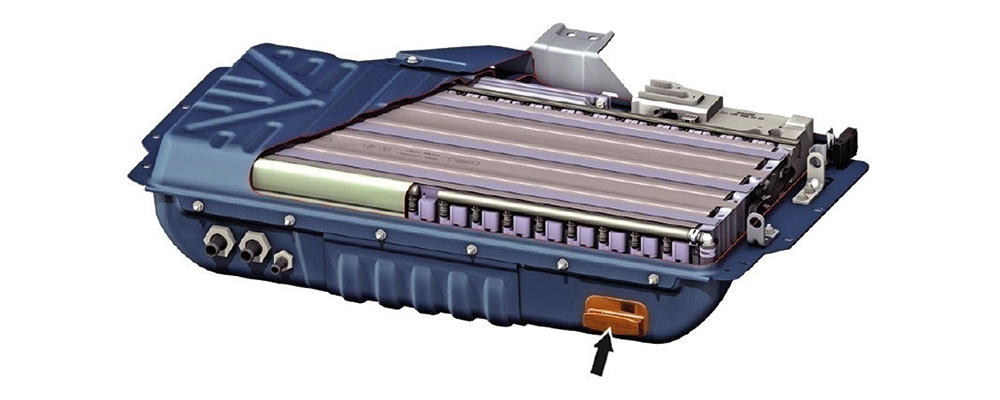

High-voltage disconnect device

The high-voltage disconnect device is located on the right at the rear of the high-voltage battery.

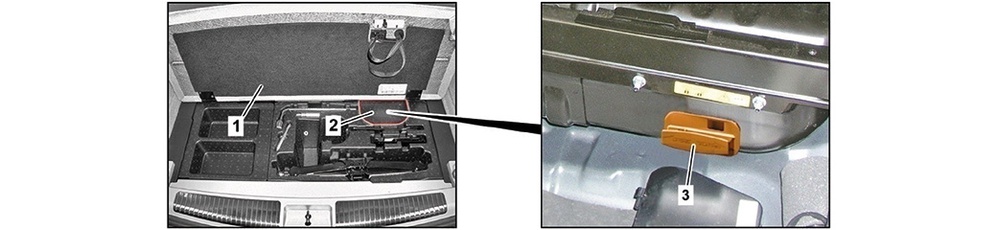

High-voltage disconnect device

Lift load compartment floor (1) / Remove cover (2) / Push switch (3) to the right and pull off high-voltage battery

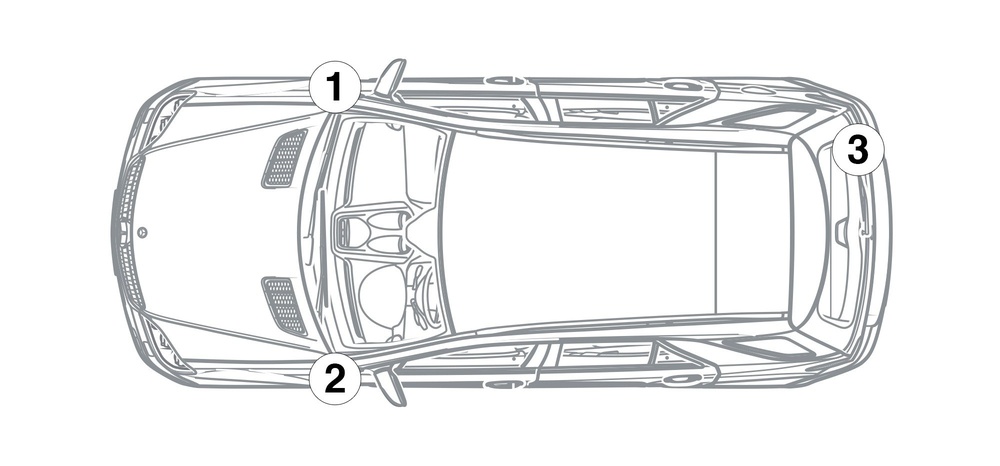

Vehicle identification

  • Right fender

  • Left fender

  • Right of liftgate
