GLC-Class HYBRID PLUS Cross-country vehicle model 253

as of 2015


  • On-board electrical system battery

  • Additional battery

  • High-voltage battery

  • High-voltage charge socket

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device

Note

The alternative high-voltage disconnect device is only to be operated when the high-voltage disconnect device in the engine compartment is inaccessible.

Legend

  • Airbag

  • Gas generator

  • Seat belt tensioner

  • Gas-filled strut

  • Fuel tank

  • Restraint systems control unit

  • 12 V Battery

  • High-voltage battery

  • High-voltage components

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device

  • Pedestrian protection

High-voltage disconnect device

The high-voltage disconnect device is located in the engine compartment next to the battery.

Entriegelung (1) ziehen / Schalter (2) herausziehen

Alternative high-voltage disconnect device

Unter der Abdeckung links am Cockpit befindet sich die alternative Hochvolt-Abschaltvorrichtung. Sie ist mit einem Hinweisschild gekennzeichnet.

Note

The alternative high-voltage disconnect device is only to be operated when the high-voltage disconnect device in the engine compartment is inaccessible.

Abdeckung (1) entfernen / Leitung an der markierten Stelle (2) durchschneiden

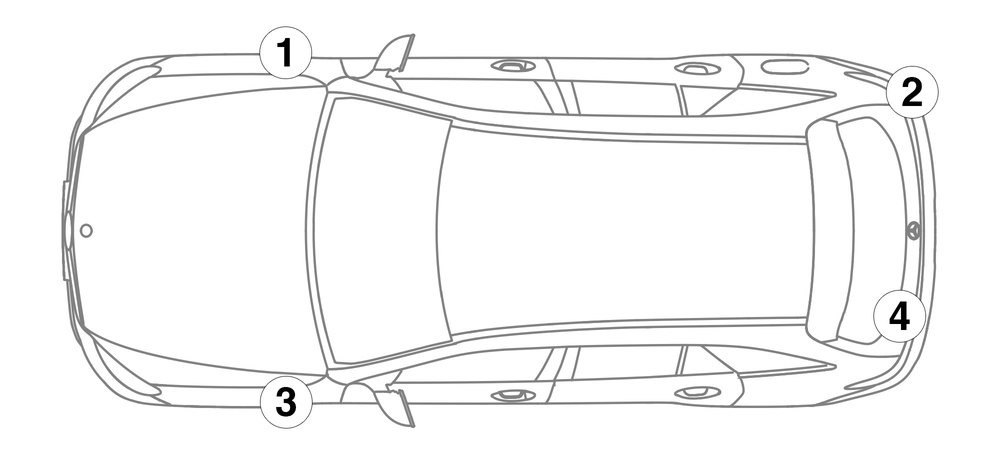

Vehicle identification

  • Right fender

  • HV charge socket

  • Left fender

  • Left of trunk lid
