B-Class ELECTRIC DRIVE Tourer model 242

as of 2014


  • Battery 12 V

  • High-voltage battery

  • HV charge socket

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device

Note

The alternative high-voltage disconnect device is only to be operated when access to the high-voltage disconnect device in the instrument panel is not possible.

Legend

  • Airbag

  • Gas generator

  • Seat belt tensioner

  • Gas-filled strut

  • Restraint systems control unit

  • 12 V Battery

  • High-voltage battery

  • High-voltage components

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device

High-voltage disconnect device

The high-voltage disconnect device is located behind the side panel of the instrument panel on the left (viewed in the direction of travel). It is marked with a symbol.

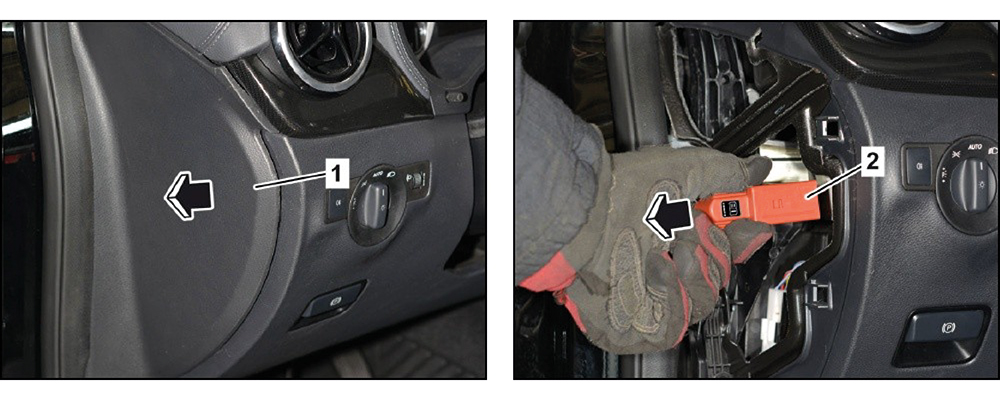

Remove side panel (1) of instrument panel / Disconnect plug (2)

Alternative high-voltage disconnect device

The alternative high-voltage disconnect device is located behind the footwell trim on the passenger side. It is marked with an information label.

Note

The alternative high-voltage disconnect device is only to be operated when access to the high-voltage disconnect device in the instrument panel is not possible.

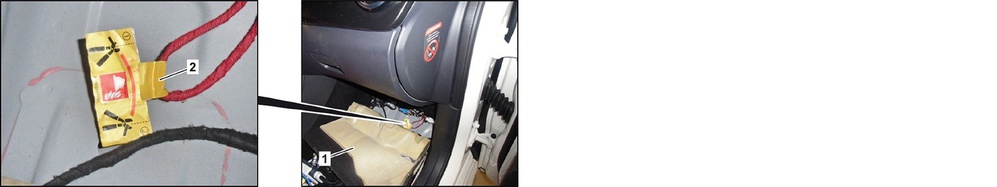

Information label on alternative high-voltage disconnect device

Fold back the footwell trim (1) / Sever the line at the marked point (2)

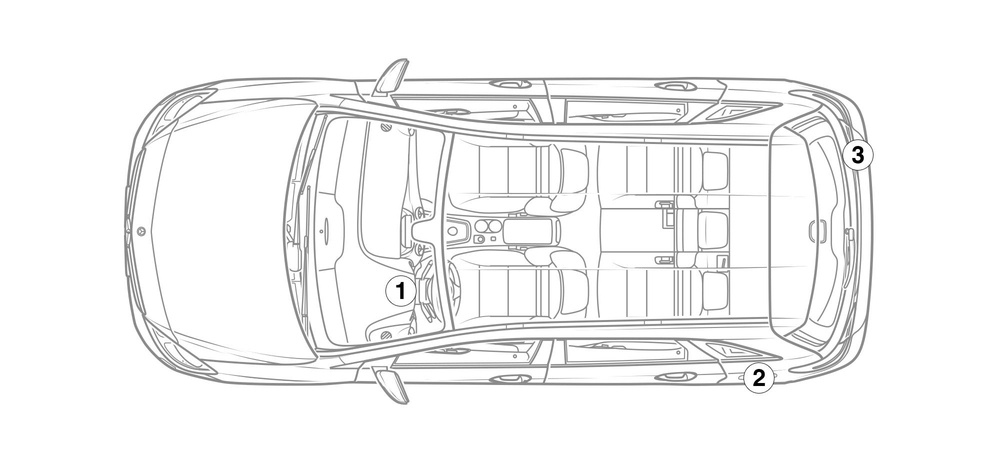

Vehicle identification

  • Instrument cluster

  • HV charge socket

  • Right of liftgate
