S-Class HYBRID PLUS (plug-in hybrid) Sedan model 222

as of 2014


  • On-board electrical system battery

  • Additional battery

  • High-voltage battery

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device, left-hand drive

  • Alternative high-voltage disconnect device, right-hand drive

  • High-voltage charge socket

Note

The alternative high-voltage disconnect device is only to be used when access to the high-voltage disconnect device in the trunk is not possible.

Legend

  • Airbag

  • Gas generator

  • Seat belt tensioner

  • Gas-filled strut

  • Fuel tank

  • Restraint systems control unit

  • 12 V Battery

  • High-voltage battery

  • High-voltage components

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device

  • Pedestrian protection

  • Beltbag

High-voltage disconnect device

The high-voltage disconnect device is located on the right at the rear under the cover of the trunk recess. The recess lining is pulled out of the trunk by the tab below the trunk sill in the center of the vehicle. The tab is marked with the symbol .

High-voltage disconnect device in trunk

Pull release (1) / Pull out switch (2)

Alternative high-voltage disconnect device

The alternative high-voltage disconnect device is located under the cover of the fuse box on the left of the cockpit. It is marked with an information label.

Note

The alternative high-voltage disconnect device is only to be used when access to the high-voltage disconnect device in the trunk is not possible.

Information label on alternative high voltage disconnect device

Remove cover (1) of fuse box / Cut line at marked location (2)

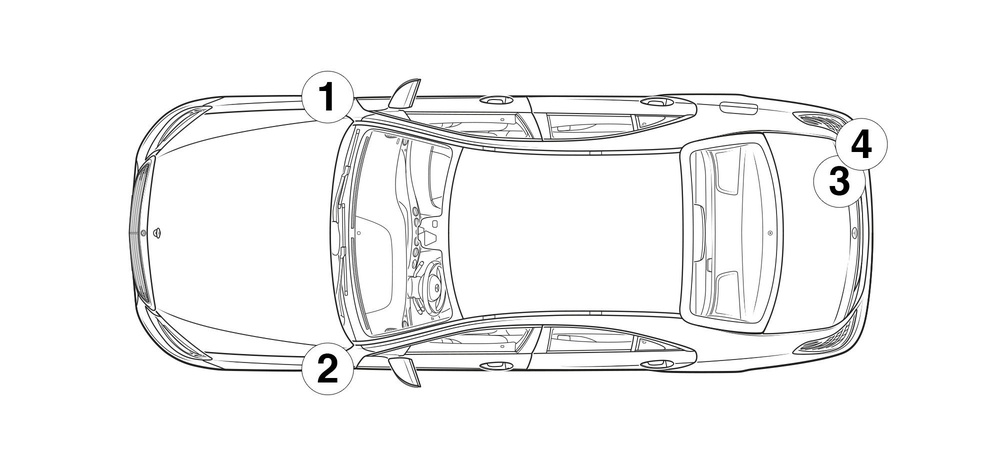

Vehicle identification

  • Right fender

  • Left fender

  • Right of trunk lid

  • Charge socket
