E-Class HYBRID PLUS Wagon model 213

as of 2017


  • 12 V Battery, Left-hand drive

  • 12 V Battery, Right-hand drive

  • High-voltage battery

  • HV charge socket

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device, left-hand drive

  • Alternative high-voltage disconnect device, right-hand drive

Note

The alternative high-voltage disconnect device is only to be operated when the high-voltage disconnect device in the engine compartment is inaccessible.

Switch off the ignition before operating the high-voltage disconnect device and the alternative high-voltage disconnect device.

Legend

  • Airbag

  • Gas generator

  • Seat belt tensioner

  • Gas-filled strut

  • Fuel tank

  • Restraint systems control unit

  • 12 V Battery

  • High-voltage battery

  • High-voltage components

  • High-voltage disconnect device

  • Alternative high-voltage disconnect device

  • Pedestrian protection

High-voltage disconnect device

The high-voltage disconnect device is located in the engine compartment next to the coolant expansion reservoir on the right (viewed in the direction of travel).

Operate release (1) / Pull out switch (2)

Alternative high-voltage disconnect device

The alternative high-voltage disconnect device is located un- der the cover of the fuse box on the left of the cockpit. It is marked with an information label.

Information label on alternative high voltage disconnect device

Remove cover (1) of fuse box / Cut line at marked location (2)

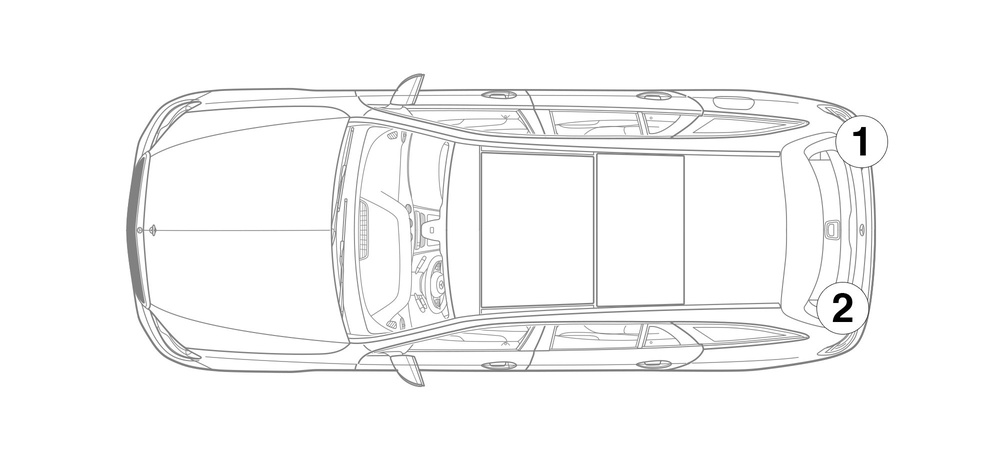

Vehicle identification

  • Left of trunk lid

  • HV charge socket
