E-Class HYBRID sedan, model 212

as of 2012


  • High-voltage battery (Left-hand drive)

  • High-voltage battery (Right-hand drive)

  • On-board electrical system battery

  • Additional battery, left-hand drive (option)

  • Additional battery, righ-hand drive (option)

  • High-voltage disconnect device

Legend

  • Airbag

  • Gas generator

  • Seat belt tensioner

  • Gas-filled strut

  • Body reinforcement

  • Fuel tank

  • Restraint systems control unit

  • 12 V Battery

  • High-voltage battery

  • High-voltage components

  • High-voltage disconnect device

  • Pedestrian protection

High-voltage disconnect device

High-voltage disconnect device The high-voltage disconnect device (1) is located on the right side of the engine compartment.

High-voltage disconnect device The high-voltage disconnect device (1) is located on the right side of the engine compartment.

Operate release (1) / Pull out switch (2)

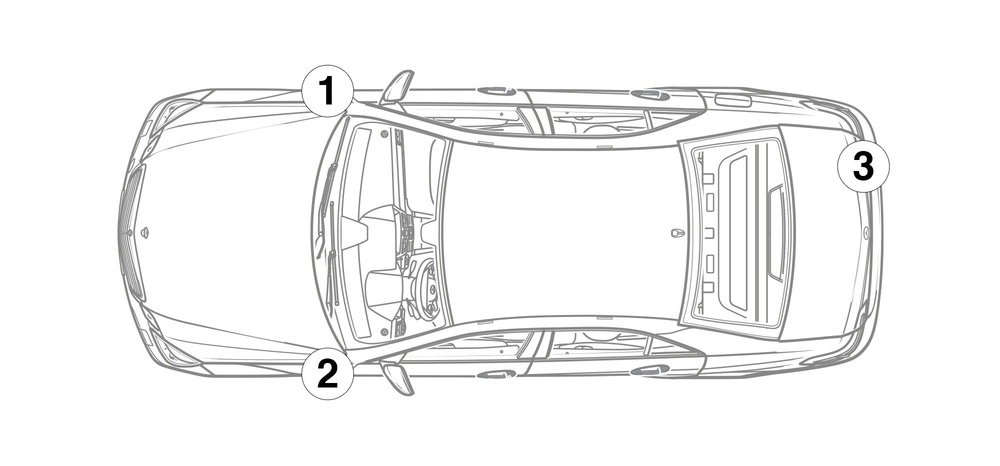

Vehicle identification

  • Right fender

  • Left fender

  • Right of trunk lid
